● DGFB ampoule filling machine main application and applicable range:
DGFB ampoule filling machine main application and applicable range
This machine is mainly used for an 1-20 ml specifications of the type B easy flex the neck of the bottle filling sealing went.
The machine adopts an 8 to 16 station stepping type transmission system, desktop type structure, automatic completion from ground dragon into bottles, before nitrogen (or at ChongQi), filling and fullback nitrogen, preheating, drawing out the full set of the bottle to the sealing of the production process. This machine can use single can also with vertical ultrasonic cleaning machine, sterilization drying set into linkage line use.
Potting machine working principle went

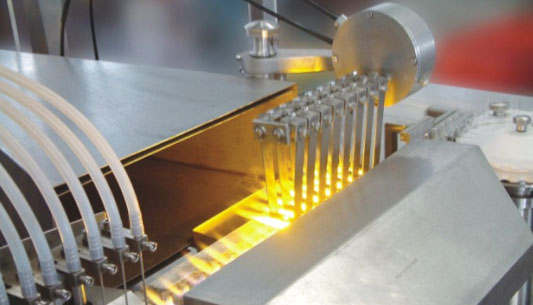

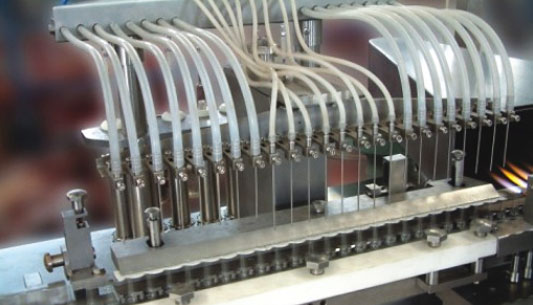

The machine adopts straight line, an intermittent filling and sealing. From the bottle dry machine sterilization went through into the bottle with filling sealing machine sent to the transmission parts, twisted dragon wring dragon will be disorderly state went up the bottle into the separation of orderly state and will advance one bottle went to enter bottles dial the wheel, enter bottles dial the wheel will be submitted to bottle went for went before the beam parts, went before the beam parts will again went into a continuous movement bottle intermittent movement way among sent to walk and then went steps beam into the way the following five in turn sent to the station before filling nitrogen, irrigation, liquid, nitrogen, preheating, filling after drawing sealing work station. In filling stations, and may, according to the user n the needs of their products tailored before filling stations are available nitrogen, set to blunt the compressed air, also can be set to blunt other inert gas, filling station after nitrogen is set to blunt inert gas; In filling liquid location, DuoGe glass piston pump through the irrigation needle injection, the solution will be filling with pump went by adjusting the quantity can adjust the handwheel; Bake at stations, went bottle mouth blow out of the fire and the burning liquid gas oxygen gas heating mixing, and the influence of the wheel spin movement, drawing sealing location in the top, went further heated by drawing wire clip softening, seals and sealing of the mouth of the bottle after bottle of dial out went round is pushed into a bottle tray, can also pick up according to the requirements of our customers with mixed gas as gas hydrogen.
Due to an outdoor row of gas to 500 m3 / h, so the user is in the room design should be considered when indoor air to fill more than equal to 500 m3 / h. The row of gas pipeline from users to connect with, and you also need to add one is 1000 m3 / h wind fan installed in the pipeline from room at the exit.

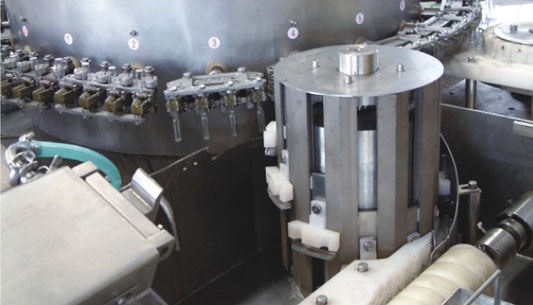

In part, an enter bottles with the dryer outlet design has a controllable buffer, it consists of a set of travel control system and a plastic bottle of block with that is used to control the number of bottle in the area, when the area more than the set the number of bottle, travel control system, can make bottle-washing instruction to stop work, the dryer nets with automatic stop lose bottle, when the area of the bottle down to the set, potting machine into the bottle ground stop automatically enter bottles, dragon until the regional bottle returned to normal. So the line to realize the linkage of the work, maintain the work before and after single compatible.
